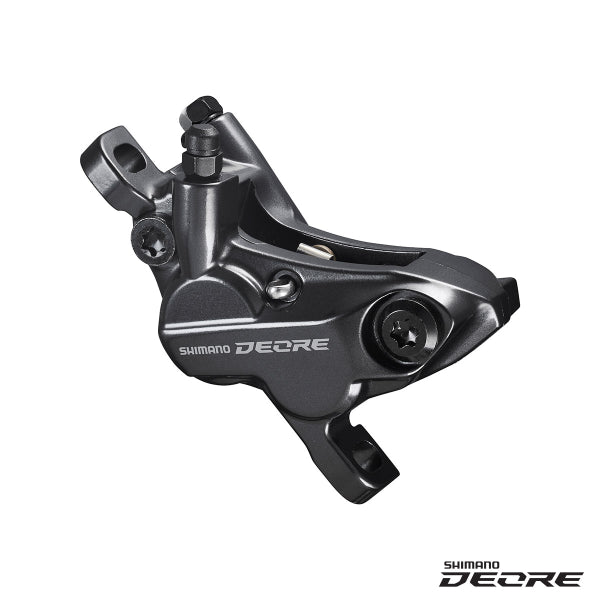

SHIMANO BR-M6120 DISC BRAKE CALIPER DEORE w/RESIN PAD

Shimano BR-M6120 Disc Brake Caliper Deore

The Shimano Deore M6120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.

Deore – 4-Piston – Ice Technologies – Hydraulic Disc Brake Caliper

Features
• Quick piston retraction
• High power 4-piston disc brake caliper

Benefits
• Superior modulation gives you the power you need
• Quick and easy assembly
• High power braking instills greater downhill confidence and control

Product Specifications
Model No: BR-M6120
Series: Deore M6100 Series
Colour Series Color
Brake hose color (kit): Black
Brake hose (Kit): SM-BH90-SS
Brake type: Hydraulic disc brake
Caliper fixing bolt_Anti loosen method: Snap ring
Caliper fixing bolt_Tool size: 5 mm
Hose joint: Straight
Mount type: Post-type
ONE WAY BLEEDING: ✔
Pad_Standard: D03S Resin
Pad_Option: D02S Metal
Pad mount: Split pin Stainless Steel
Piston: 4
Recommended disc brake rotor: SM-RT54* SM-RT56* SM-RT64 SM-RT66
Remarks *: Only compatible with resin pad
J-Kit spec: ✔
Oil: Shimano Mineral
Compatible Brake Rotor Size_140 mm (SS) ✔
Compatible Brake Rotor Size_160 mm (S) ✔
Compatible Brake Rotor Size_180 mm (M) ✔
Compatible Brake Rotor Size_203 mm (L) ✔
